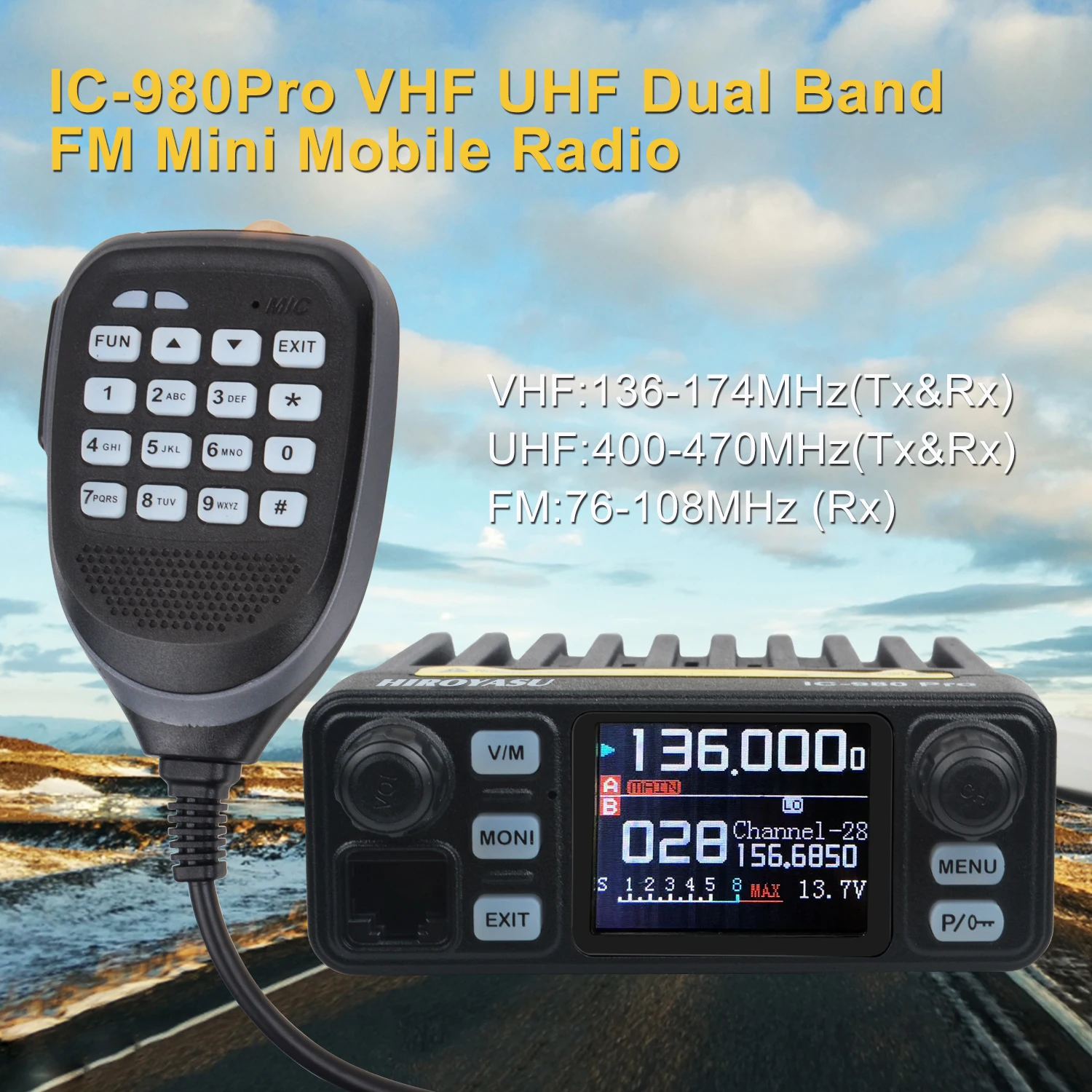

Hiroyasu Walkie Talkie IC-980Pro VHF UHF Dual Band Dual Watch 25W 200Ch Noise Reduction Mini FM Vox Scrambler Mobile Radio

HIROYASU Walkie Talkie IC-980Pro VHF UHF Dual Band Dual Watch 25W 200Ch Background Noise Reduction Mini FM Vox Scrambler Mobile Radio IC-980 Pro Transceiver with 13.8V Car Cigarette Lighter Input Power Cable

Troubleshoot:

1.Q: How to turn the FM Broadcast Radio Station ON?

   A: Press “FUN” key on the microphone momentarily, then press Numeric key”7″ subsequently to turn the Commercial FM Radio ON. repeater the procedure to turn FM radio off.

2. Q: does this transceiver have 1750Hz Tone for Repeater Access in E.U

   A: Yes,we re-designed the PCB board, and added a 1750Hz Tone Module in it basd on the demands from E.U customers. and all production batch of radios starting from April 19 are configuated with 1750Hz Tone.

3. Q: How to save a memory channel?

A: 1st. Press V/M button on the front panel to switch your radio in VFO Mode,

          2nd: Input the desired frequency by the numeric key on the microphone

          3rd: Press “FUN” key on the microphone momentarily, then press Numeric key”0″ subsequently, and press “Up” or” Down” Key on the microphone to select your desired channel number . (Notes:the LCD will display Cover->001,   “Cover->001 ” means that the channel 1 is occupied, you can save your frequency to cover the previous memory channel.,  SAVE->234 means that the channel you selected is empty, you can directly save your frequency to it. )

       4th: Press “FUN” key on the microphone to save the frequency to channel,.When the data is stored, the word OK will be displayed.

       5th: you can recall the memory channel in channel model.

4. Q: where can i get the HIROYASU IC-980Pro programming software?

     A: send us your email address by order message , then we will email it to you immediately when we read your message.

5. Q: How does the built-in cooling fans initiate?

     A:The cooling fan works intelligently when radiator of the RF power amplifier reaches a certain high temperature even if the transceiver is receiving still.

Features:

Frequency Range:

FM:76-108MHz (Rx)

VHF:136-174MHz (Tx&Rx)

UHF:400-470MHz (Tx&Rx)

Output Power(H/L Power Switchable): High=25W, LOW=10W

Memory Channels: 200

Background noise Canceling

1750Hz Tone

Mini Size, light weight

Compandor

Scrambler

Busy Channel Lock

TOT

TOA

Repeater SFT-D

SFT Frequency

Sep:2.5/5/6.25/10/12.5/20/25/30K

CTCSS/DCS and special DCS

Display Mode: Frequency/Ch/MR

Roger Beep (end of transmission tone)

Double Watch

VOX( Voice-activated transmission)

Keypad lock

Priority Channel Scan

Cigarette Lighter Power cable

Dc 13.8V power Supply

Photos:

Specifications:

Note: Specifications are subject to change without notice due to technical improvement.

Package Contains:

1×IC-980 Pro Mni Radio Body

1× Speaker Mic

1× Bracket

1× Cigarette Light Power Cable

1× Screw Sets

1× Hook for Speaker Mic

1× ENG Manual
