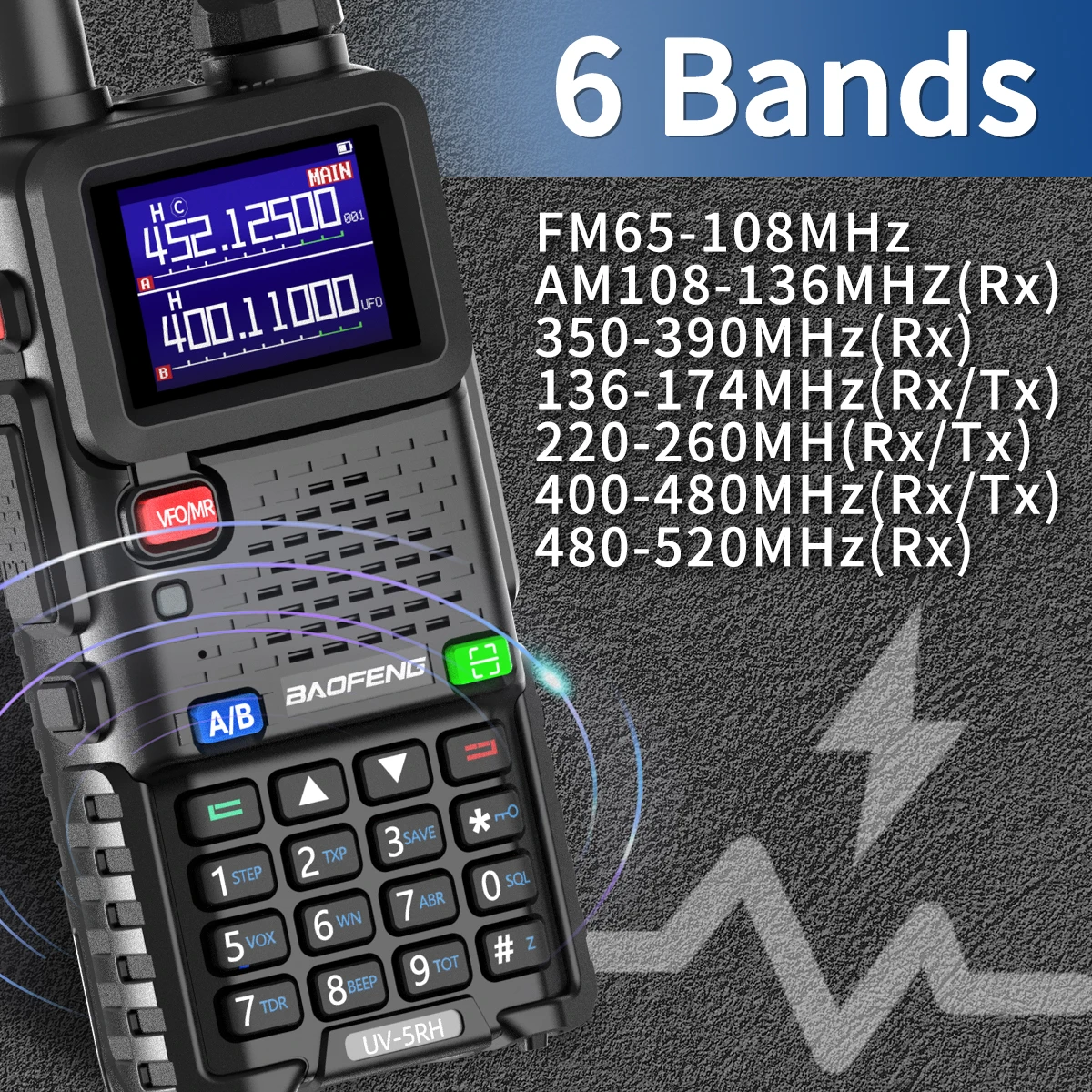

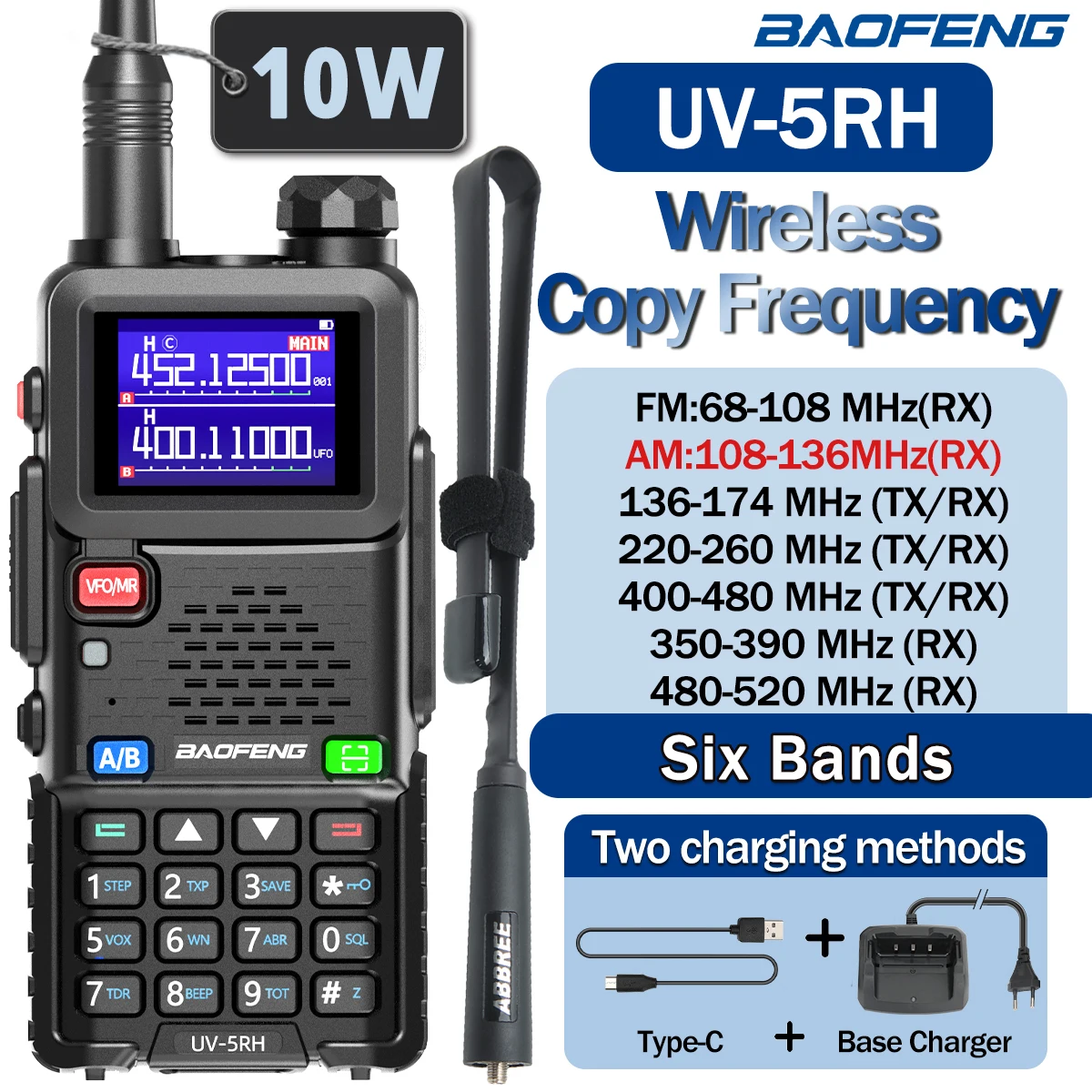

68-108 MHz (Only RX)
350-370 MHz (Only RX)

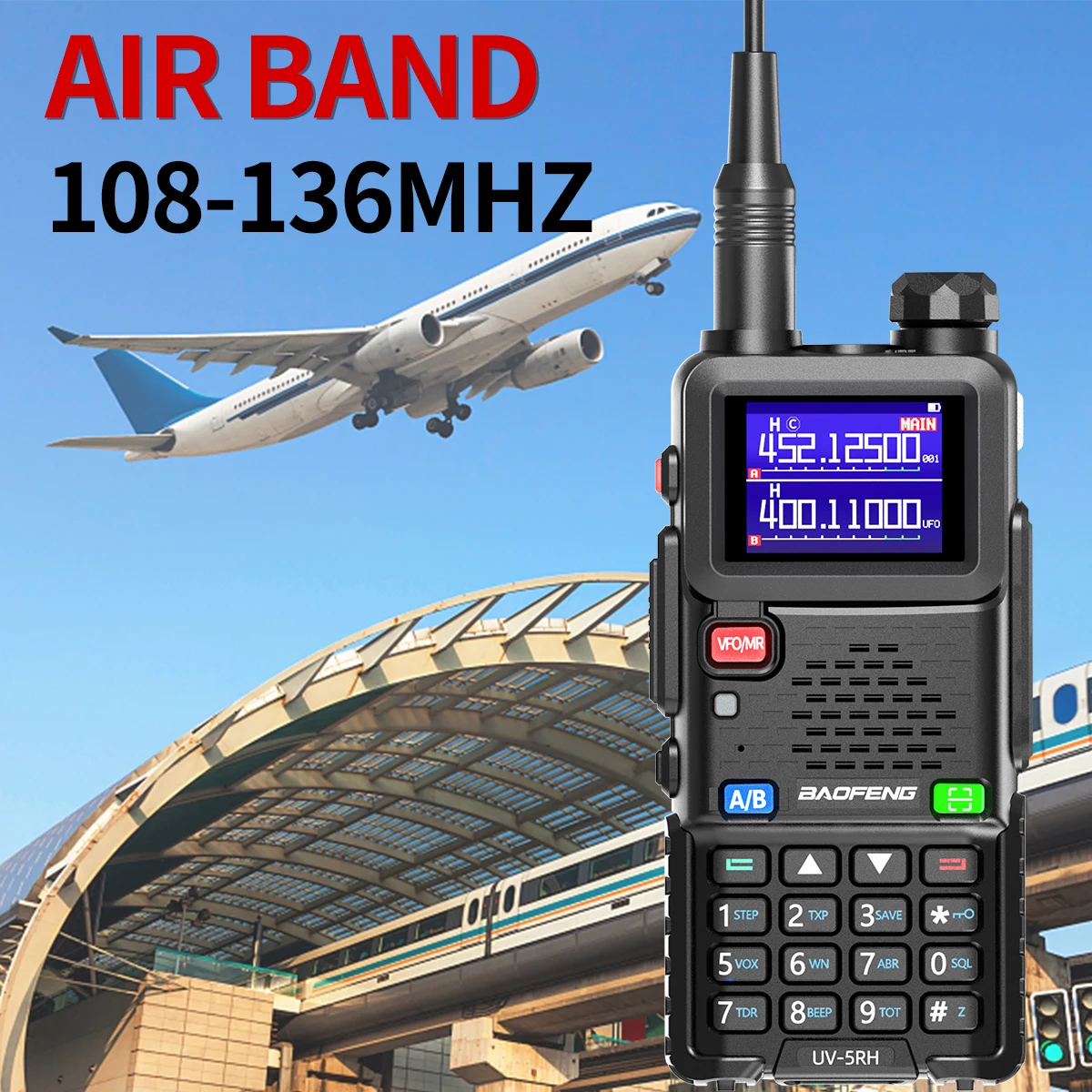

108-136 MHz (Air frequency receiving)
136-174 MHz (TX/RX)
220-260 MHz (TX/RX)
400-480 MHz (TX/RX)

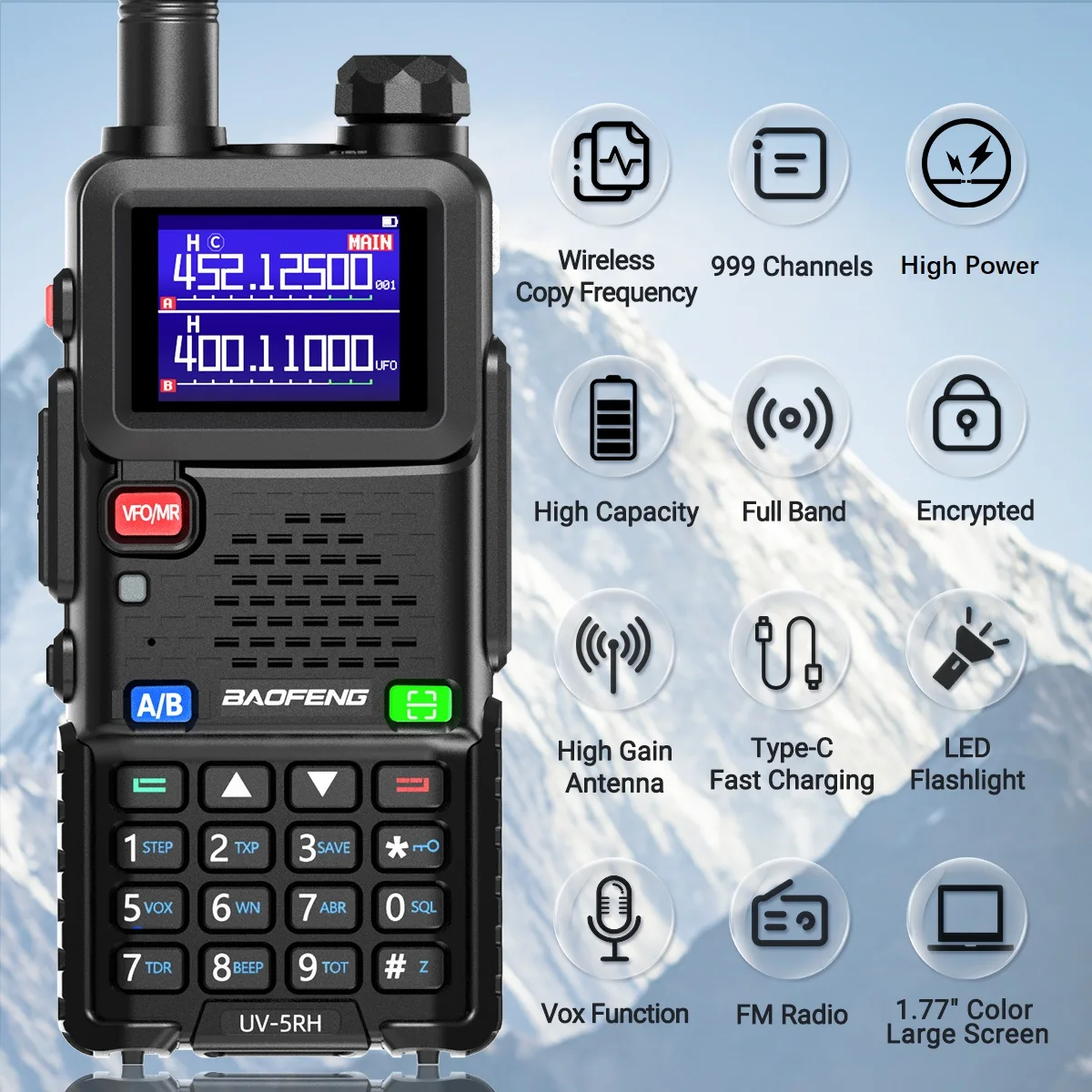

★【Upgraded UV-5R】
UV-5RH is a professional ham radio, True 10W high power, High/Mid/Low Tri-Power Switchover. Up to 999channels.1.77 inch color screen.
★【Wireless Copy Frequency 】
Press the EXIT button to enter the“FQSCAN”interface. Press EXIT again and the UV-5RH will search for another radio transmission frequency and privacy code. Finally press the menu to store the frequency. Two walkie-talkies can communicate normally. Communication is unobstructed, and traditional writing frequency is rejected.

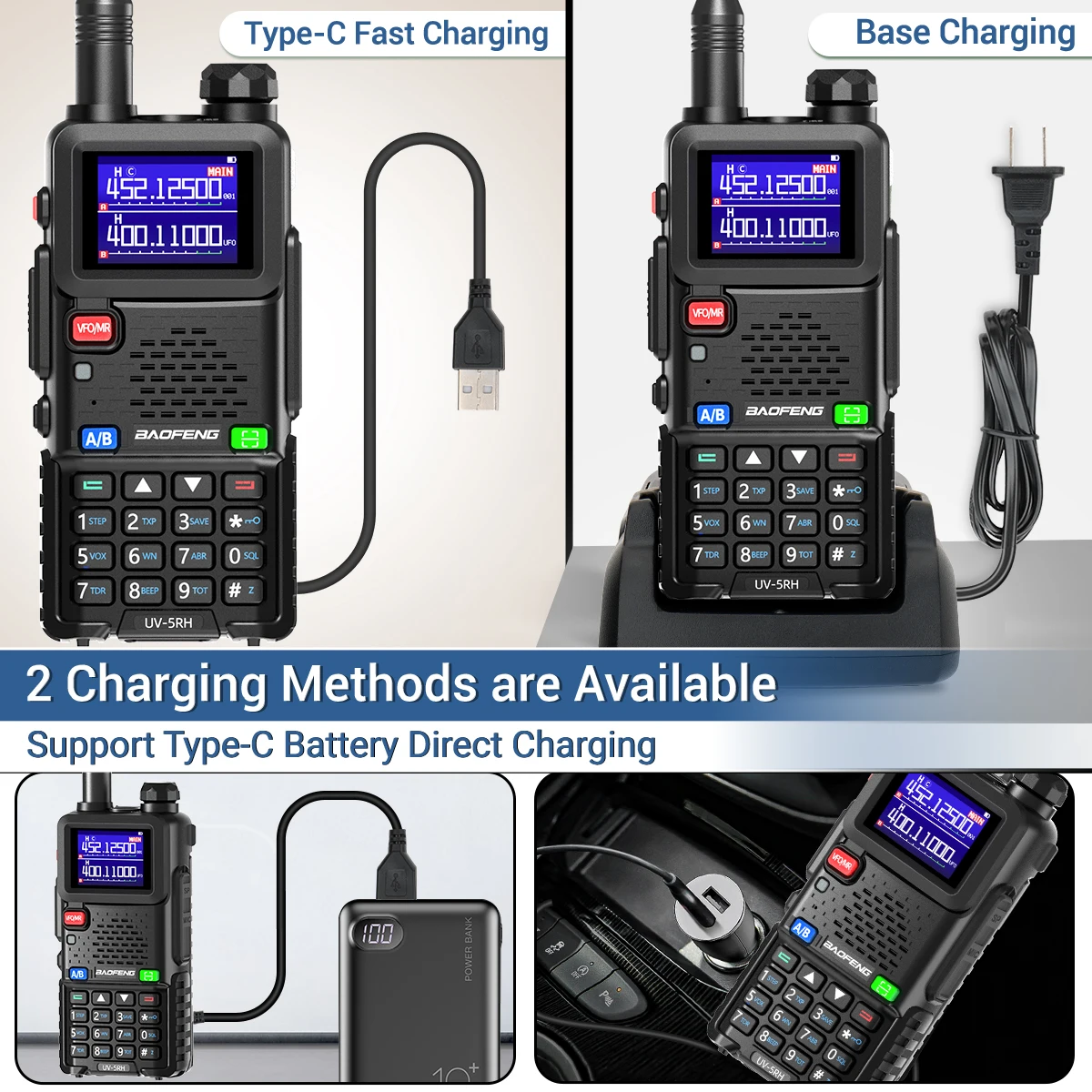

★ 【Type-C USB Charging 】
Type-C charging is a trend for mobile devices as it has low requirements for power sources and places. The UV-5RH is Type-C USB rechargeable, for which you can easily charge it like a phone in your car, with a power bank or laptop. Portable for your go-kit.
★【LED Flashlight】
LED spotlight, life emergency helper, Powerful, it can also change into a flashlight in seconds, lighting up your dark night anytime, anywhere.
★【PC & Manual Programmable】
Apart from programming the radio via computer software, users can also use the keypad to program most settings in the menu, for example, adding/deleting a memory channel, adding/removing a channel from the scanning list, adjusting VOX/squelch/power save levels, etc.
|
All of our items are Brand New
|
|
Model
|
Baofeng UV-5RH
|
|
Dual Band/Dual Display/Dual Standby
|
A/B band independent operation(UVUUVV)
|
|
128groups channels storage
|
Short cut menu operation mode
|
|
VFO&Memory channels scan
|
EmergencyAlarm
|
|
Time-out Timer(TOT)
|
0~9grades VOX selectable
|
|
PTT&ANIID
|
FM radio and 25 stations storage
|
|
Voice companding
|
50CTCSS/104DCS
|
|
High/Low TX power selectable
|
Busy channel lock-out(BCLO)
|
|
DTMF function
|
OFFSET function
|
|
Wide/Narrow Band(25kHz/12.5kHz)
|
Yes
|
|
|
VOXfunction
|
Yes
|
|
|
Busy lockout function
|
Yes
|
|
|
Scanning function
|
Yes
|
|
|
Monitor function
|
Yes
|
|
|
Time-out Timer(TOT) function
|
Yes
|
|
|
LCD display
|
Yes
|
|
|
Dual display
|
Yes
|
|
|
Battery voltage display function
|
Yes
|
|
|
Channel name display and editing functions
|
Yes
|
|
|
Signal strength indicator
|
Yes
|
|
|
Keypad lock function
|
Yes
|
|
|
Built-in Ledtorch
|
Yes
|
|
|
FM radio
|
Yes
|
|
|
Wire clone function
|
Yes
|
|
|
Emergency alarm function
|
Yes
|
|
|
Low battery alarm
|
Yes
|
|
|
Power saving function
|
Yes
|
|
|
High/MID/Low TXpower selectable
|
Yes
|
|
|
ROGERSET
|
YesYes
|
|
|
Chinese and English voice prompt
|
Yes
|
|
|
PC software programmable
|
Yes
|
|
|
Rated Voltage
|
7.4VDC±10%
|
|
Output power
|
<=5W
|
|
Battery type
|
Li-ionbattery
|
|
Battery capacity
|
2500mAh
|
|
Working temperature
|
-20~+50°C
|
|
Antenna Impedance
|
50ohm
|
|
Weight
|
300g
|
|
Dimension(LXWXH)
|
58X40X130mm(NotAntenna)
|
|
Frequency stability
|
±2.5ppm
|
|
Carierwave tolerance
|
5ppm
|
|
Modulation
|
16K Ø F3E/11K Ø F3E
|
|
Max frequency deviation
|
<5kHz(Wide)
<2.5kHz(Narrow)
|
|
Modulation character
|
6dB perfold frequency patch
|
|
Emission current
|
<1.6A(5W)
|
|
CTCSS/DCS
|
0.5±0.1kHz(Wide)
0.3±0.1kHz(Narrow)
|
|
Sensitivity
|
<0.16µV(12dBSINAD)
|
|
Silent sensitivity
|
<0.2µV
|
|
Intermediation Distortion
|
<10%
|
|
Intermodulation
|
8-12mv
|
|
Adjacent channel selectivity(wide/narrow)
|
<-65dB(Wide)<-60dB(Narrow)
|

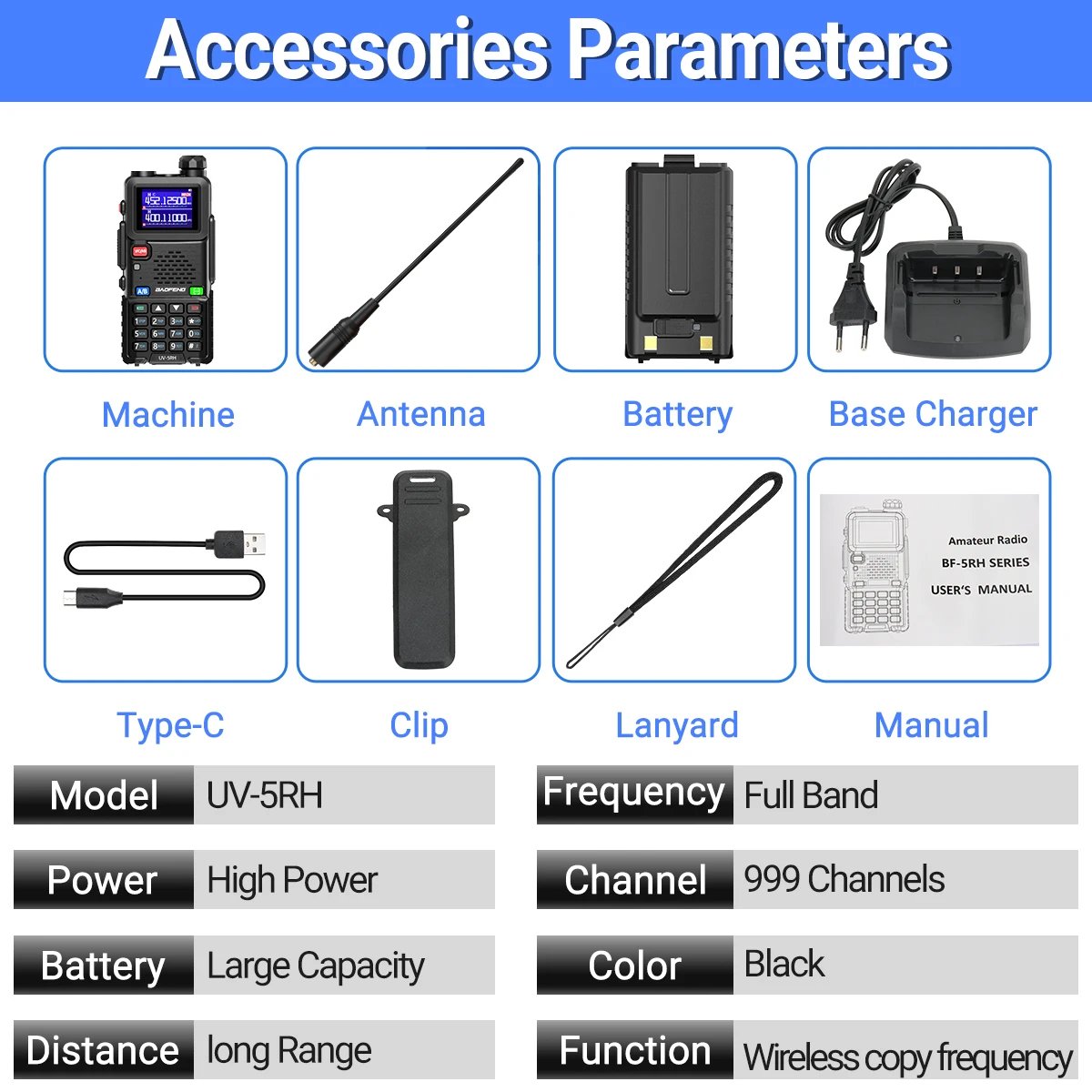

Package Include:
1X Portable radio
1X Antenna
1 X USB
1X Li-ion battery pac
1X Beltclip
1X Thesling
1X User’smanual
